Flumes

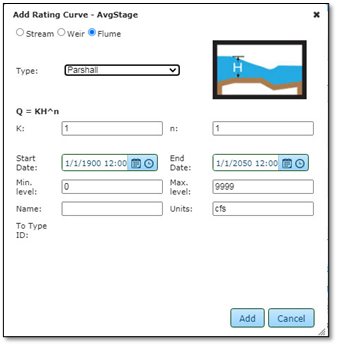

The Rating Curve Tool includes the formula for a Parshall flume which is frequently used in municipal and industrial applications.
Parshall
|
Parshall
|
 |
The formula for a Parshall flume is: Q =KHn
Where: Q = flow rate
H = head measured at point H
K = constant, dependent upon throat width and units
n = constant power, dependent upon throat width
Discharge Equations for Parshall Flumes with Head in feet are shown in the table below:
|
Throat width, W
|
CFS
|
GPM
|
MGD
|
|
1
|
Q = 0.3380 H1.550
|
Q = 151.7 H1.550
|
Q = 0.2184 H1.550
|
|
2
|
Q = 0.6760 H1.550
|
Q = 303.4 H1.550
|
Q = 0.4369 H1.550
|
|
3
|
Q = 0.9920 H1.547
|
Q = 445.2 H1.547
|
Q = 0.6411 H1.547
|
|
6
|
Q = 2.060 H1.580
|
Q = 924.5 H1.580
|
Q = 1.331 H1.580
|
|
9
|
Q = 3.070 H1.530
|
Q = 1378 H1.530
|
Q = 1.984 H1.530
|
|
1
|
Q = 4.000 H1.522
|
Q = 1795 H1.522
|
Q = 2.585 H1.522
|
|
1½
|
Q = 6.000 H1.538
|
Q = 2693 H1.538
|
Q = 3.878 H1.538
|
|
2
|
Q = 8.000 H1.550
|
Q = 3590 H1.550
|
Q = 5.170 H1.550
|
|
3
|
Q = 12.00 H1.566
|
Q = 5386 H1.566
|
Q = 7.756 H1.566
|
|
4
|
Q = 16.00 H1.578
|
Q = 7181 H1.578
|
Q = 10.34 H1.578
|
|
5
|
Q = 20.00 H1.587
|
Q = 8976 H1.587
|
Q = 12.93 H1.587
|
|
6
|
Q = 24.00 H1.595
|
Q = 10770 H1.595
|
Q = 15.51 H1.595
|
|
8
|
Q = 32.00 H1.607
|
Q = 14360 H1.607
|
Q = 20.68 H1.607
|
|
10 to 50 ft.
|
Q = (3.688W + 2.5) H1.6
|
Q = (1655W +1122) H1.6
|
Q = (2.384W +1.616) H1.6
|
NOTE: Coefficients for throat widths larger than 10 feet can be found at: https://www.usbr.gov/tsc/techreferences/mands/wmm/chap08_10.html
